CHDK quick install Guide

This guide was based off the canon powershot s100.

It might work for other cameras but,

if it does not work for your camera visit

Prepare your SD card for more help and info.

Step 1

Download and run camera version 1.3 to get camera version.
http://chdk.setepontos.com/index.php?topic=4743.0
(ACID is good too by the way….I have both )

Camera Version 1.3

CameraVersion1.3

ACID

ACID

This one hangs for a bit sometimes

when you try to use it

Step 2

Browse your computer and then Open a picture taken with your

camera with the program to get your camera version number.

Step 3

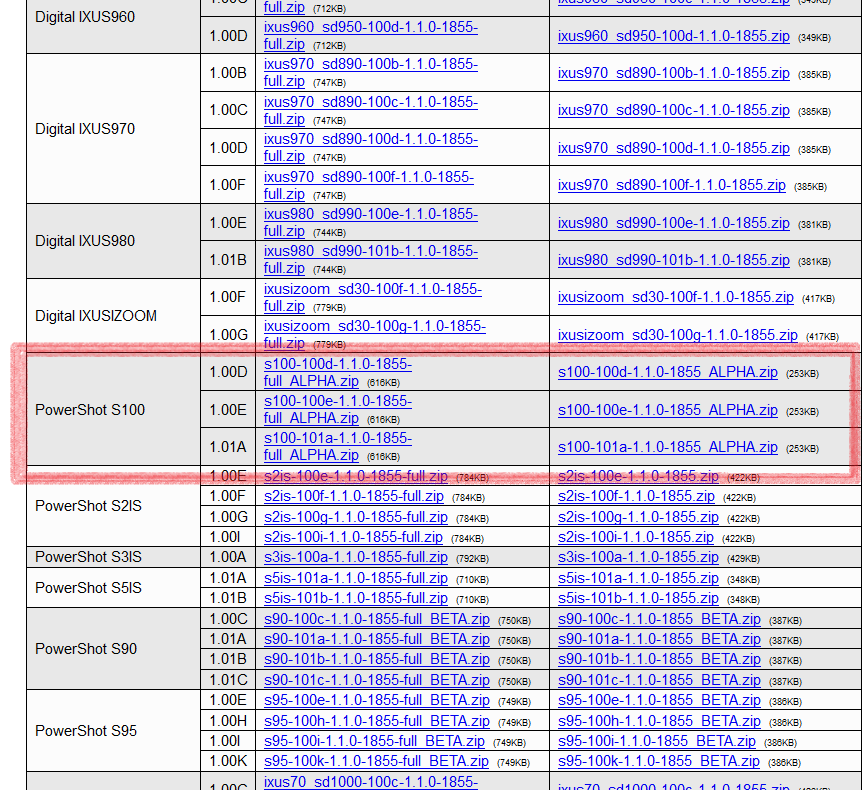

Locate and download correct CHDK version from:
http://www.mighty-hoernsche.de/trunk/

S100 trunk

Step 4

Unzip the files on your computer.

SD card reader

For the next’ few

steps you need’ an

SD card reader

step 5

make your sd card bootable
(I used EOScard 1.2, can be found here http://pel.hu/getpage.php?ac=2 or here http://pel.hu/down/)

(Press refresh, click on chdk, then hit save, and your done)

EOScard 1.2

Step 6

Place CHDK files on the root of the SD card.

SD card root

Step 7

Lock the card by sliding the small switch and place the SD card in the camera.

SD card Lock switch

Step 8

A.

To start CHDK in play mode:

Press and hold the play button until the CHDK logo appears.

  • while in play mode half press shutter takes you to shooting mode.

B.

To start CHDK in Shooting mode (does not work on all cameras):

Press and hold on/off button until the CHDK logo appears.

  • while in shooting mode press and hold the play button to go to play mode

CHDK LOGO

Source: CHDK quick install Guide | CHDK Wiki | Fandom

CHDK quick install Guide  was last modified: April 2nd, 2021 by Jovan Stosic
